Global Supplier of CF-H Flexible Couplings for Heavy Machinery Industrial Applications
CF-H Flexible Rubber Couplings are designed for high torsional stiffness and durability, offering reliable shock absorption and vibration damping. These couplings ensure resonance-free operation for diesel-hydraulic systems and compensate for axial, radial, and angular misalignments.
Key Benefits:
1. High torsional stiffness for heavy-duty performance
2. Oil-resistant and high-temperature tolerance
3. Shock and vibration dampening
4. Easy installation with minimal mounting effort
5. Durable and cost-effective design.
CF-H Couplings Series
The Advantages of Y&F CF-H Series Elastic Flexible Rubber Couplings: Excellent Shock Absorption and Impact Resistance The elastic ester resin provides excellent shock absorption and vibration-damping performance similar to rubber during operation. Better Resistance in Harsh Environments This material offers enhanced resistance in high-temperature, low-temperature, and oil environments. High Quality and Durability Polyester resin ensures the durability of the coupling (connector rubber), and its long operational lifespan helps reduce torque transmission construction time. The hubs and splined shafts are securely fixed to the machine, with minimal wear and tear, requiring very low maintenance. Easy Installation and Removal Input and output can be easily connected and disconnected by rotating the shafts along the axial direction.
| Normal Operating Torque [N·m] | 100~2500 | |
| Guide Hole, Additional Machining Range [mm] | φ13~115 | |
| Operating Temperature [°C] | -40~+120 | |
| Tooth Gap | Yes | |
| Maximum Allowable Adjustment Range | Parallel Offset [mm] | 0.3~0.4 |
| Angular Displacement [°] | 0.5 | |
| Axial Displacement [mm] | ±3 | |

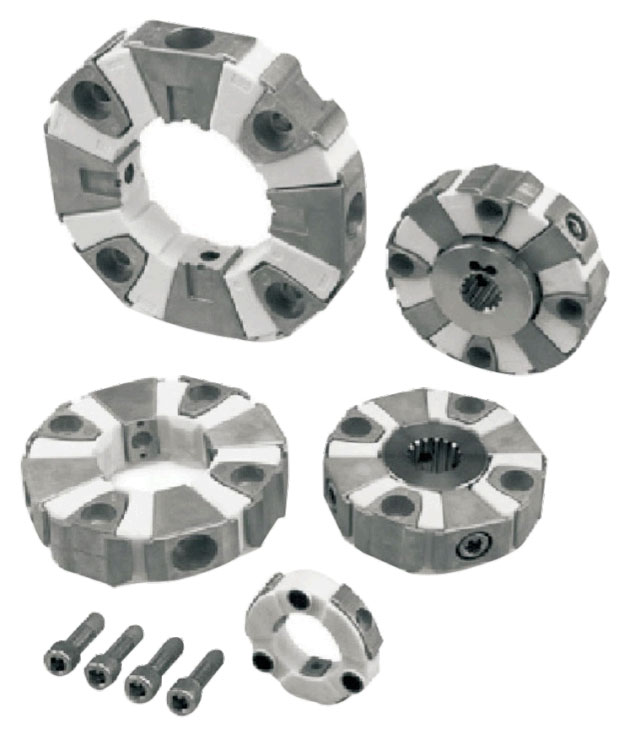

Body Shapes of Different Sizes:

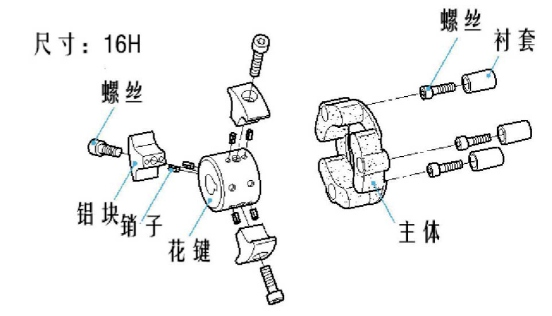

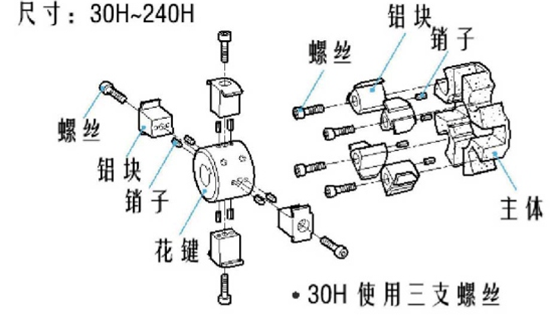

Structure:
CF-H Couplings Advantages
1. Superior Vibration Dampening
The CF-H couplings provide exceptional shock absorption and vibration damping, enhancing the overall performance and longevity of machinery and reducing noise.
2. Enhanced Environmental Resistance
Designed to withstand extreme temperatures (high and low), as well as exposure to oils and greases, making them ideal for harsh industrial environments.
3. Durability and Long Service Life
Manufactured with high-quality polyester resin, CF-H couplings are highly durable, minimizing wear and reducing the need for frequent maintenance or replacements.
4. Low Maintenance and Easy Installation
With low wear rates and minimal maintenance requirements, CF-H couplings are easy to install and remove, saving both time and cost during setup and operation.
5. Customizable and Reliable for Industrial Use
These couplings are customizable to meet the specific needs of industrial applications, ensuring reliable torque transmission, even under high-stress conditions.
6. Cost-Effective and Time-Saving
The long lifespan and reduced need for maintenance make CF-H couplings a cost-effective solution, saving on both operational costs and downtime.
As a perfect replacement of Centaflex-H coupling, 5 reasons that you should choose Y&F's CF-H series couplings
1. Superior Performance at a Competitive Price
Y&F’s CF-H couplings deliver the same high torsional stiffness, vibration damping, and shock absorption as the Centaflex-H, but at a more cost-effective price, providing excellent value without compromising on quality.
2. High Resistance to Harsh Environments
The CF-H series is designed to perform under extreme conditions, offering superior resistance to high and low temperatures, oils, and greases. This makes them ideal for heavy-duty industrial applications, ensuring reliable performance in diverse environments.
3. Longer Service Life and Low Maintenance
Made with durable polyester resin, CF-H couplings boast a long service life with minimal wear, reducing the need for frequent maintenance or replacements. This leads to lower operational costs and less downtime.
4. Customizable and Flexible Solutions
Y&F offers a range of customizable options to suit specific application requirements. Whether you need adjustments in torque, displacement, or size, the CF-H series can be tailored to meet the exact needs of your machinery and system.
5. Efficient and Easy Installation
The CF-H couplings are designed for easy installation and removal, minimizing the time and effort needed during setup or maintenance. The straightforward design reduces installation costs and helps customers quickly get their systems up and running.
By choosing Y&F’s CF-H series couplings, you can benefit from the same high performance and reliability as the Centaflex-H but with better cost-efficiency, durability, and customization options.
FAQs about CF-H Couplings
1. What are Y&F’s CF-H series couplings made of?
Answer: Y&F’s CF-H series couplings are made from high-quality polyester resin, providing excellent shock absorption, vibration damping, and resistance to harsh environmental conditions like extreme temperatures and oils.
2. What applications are CF-H couplings suitable for?
Answer: CF-H couplings are ideal for industrial applications that require vibration damping, shock absorption, and misalignment compensation. They are commonly used in diesel engines, hydraulic systems, and mechanical drive systems in industries such as manufacturing, automotive, and heavy machinery.
3. Can Y&F’s CF-H couplings be customized?
Answer: Yes, Y&F offers customizable CF-H couplings to meet the specific requirements of your machinery and system, such as adjustments for torque, displacement, or shaft alignment.
4. What is the temperature range of the CF-H couplings?
Answer: The CF-H series couplings are designed to withstand a wide temperature range, making them suitable for both high and low-temperature environments. They are engineered to perform reliably even in extreme conditions.
5. How do CF-H couplings reduce maintenance costs?
Answer: CF-H couplings are made from durable materials that minimize wear and tear, extending their service life. Their low-maintenance design means fewer replacements and less downtime, resulting in overall cost savings.
6. What are the benefits of CF-H couplings compared to Centaflex-H couplings?
Answer: Y&F’s CF-H couplings provide the same high performance in terms of vibration damping and shock absorption as Centaflex-H couplings but at a more competitive price. They also offer better customization options and superior environmental resistance, making them a cost-effective alternative.
7. How easy is it to install Y&F’s CF-H couplings?
Answer: CF-H couplings are designed for easy installation and removal. Their straightforward assembly process minimizes installation time and effort, allowing for quick setup and reducing downtime during maintenance.
8. Are Y&F’s CF-H couplings resistant to oil and grease?
Answer: Yes, the CF-H couplings are highly resistant to oils, greases, and other industrial lubricants, ensuring reliable performance in environments where such substances are present.
Centaflex H couplings explained with key features
Centaflex H couplings let you join engine shafts to pumps or machines. They have strong torsional stiffness and a tough elastomer design. The shape is small and easy to fit. These things help you move heavy loads and keep machines working well. Centaflex H couplings are used in diesel engines and hydrostatic pumps. They lower vibration and keep parts safe from being out of line.
Key Takeaways
- Centaflex H couplings have strong torsional stiffness. This helps power move well without twisting. They work even when loads are heavy.
- The tough elastomer design fights damage from oil, dirt, and heat. This makes the couplings last longer. You do not need to fix them as often.
- These couplings lower vibrations. Machines run quieter and wear out less. This helps everything work better.
- Centaflex H couplings handle small misalignments. This keeps your equipment safe from stress. You spend less money fixing things.
- Their small size makes them easy to install in tight spots. They are great for heavy-duty jobs in many industries.
Centaflex H couplings features
Torsional Stiffness
Centaflex H couplings have strong torsional stiffness. This means they can take high torque and do not twist much. Power moves from your engine to your pump or machine without problems. Your equipment works well even with heavy loads. Aluminum or steel bushes inside make the coupling stronger. These couplings work well for tough jobs where you need them to last.
Robust Elastomer Design
Centaflex H couplings use a tough elastomer element. The elastomer does not wear out fast. It can handle oil, dirt, and heat changes. This makes the coupling last longer and need less fixing. The strong design helps stop breakdowns and keeps machines running. If you use Centaflex H couplings for hard jobs, you get help from this strong material.
Vibration Damping
Centaflex H couplings lower vibration in your machines. The elastomer takes in shocks and stops vibrations. This keeps your equipment safe and makes it quieter. You hear less noise and see less damage. The table below shows how vibration damping helps your machines:
| Feature | Description |
|---|---|
| Shock Absorption | Takes in shocks and helps machines last longer. |
| Vibration Damping | Cuts down vibration and noise in your machines. |
| Resonance-Free Operation | Stops resonance and lowers wear on machine parts. |
Centaflex H couplings help your machines last longer. You get smoother work and less time fixing things.
Misalignment Compensation
Sometimes engine and pump shafts do not line up right. Centaflex H couplings help fix this problem. The elastomer is stretchy and lets the coupling handle small misalignments. Your machines do not get extra stress or wear. This saves you money and time on repairs. Centaflex H couplings keep things working even if alignment is not perfect.
Compact Dimensions
Centaflex H couplings are small and easy to fit. You can put them in tight spots. The small size makes setup simple. You save space in your engine room or machine area. Even though they are small, they still work well. Centaflex H couplings are good when you need power but do not have much space.
Engineered Plastic Element
Centaflex H couplings have an engineered plastic part. This part gives more flexibility and strength. The plastic does not get damaged by chemicals or heat. You can use these couplings in tough places. The plastic and elastomer work together to take in shocks and vibrations. You get a strong connection that lasts and keeps your equipment safe.
Tip: If you pick Centaflex H couplings, you get features that protect your machines and help them work better. You get a coupling for hard jobs, small spaces, and machines that need help with vibration and misalignment.
Benefits & Uses
Heavy-Duty Applications
Centaflex H couplings are made for tough jobs. They work well in big machines. These couplings can handle a lot of force. They keep working even when things get hard. You can use them in mining, construction, and large pumps. The special material helps you change parts less often. You finish more work and fix things less.
- These couplings are strong and last a long time.
- They do not get damaged by oil, dirt, or heat.
- You save money because you buy fewer new couplings.
Diesel Engine Connections
Diesel engines shake and move a lot. Centaflex H couplings help connect engines to pumps or generators. They soak up most of the shaking. Your machines run smoother and quieter. You get fewer problems and less noise. The couplings can handle shafts that are not lined up perfectly. They work with up to 3 degrees of angle and over 1.5 mm of movement. Your system works even if things are not perfect.
| Specification | Details |
|---|---|
| Torque Capacity | CF-H-160 handles 1,100 Nm |
| Angular Misalignment Tolerance | ≥3° |
| Axial Displacement | ≥1.5mm |
| Vibration Absorption Efficiency | 95% at 3,500 rpm |
| Temperature Range | -30°C to +100°C |
| Compliance Standards | ISO 9001, API 610 |
| Hybrid Material Benefits | 40% fewer replacements |
Note: These couplings work well at high speeds. They keep working even when the engine goes fast.
Hydrostatic Pump Integration
Hydrostatic pumps need steady power. Centaflex H couplings help connect pumps to engines easily. They soak up shocks and shaking. Your pump lasts longer and works better. You can use them in farm machines, forklifts, and hydraulic systems. The small size helps you fit them in tight spaces.
- You get steady power every time.
- The couplings protect your pump from harm.
- You do not worry about shaking or parts not lining up.
Machinery Protection
You want your machines to last a long time. Centaflex H couplings help protect your equipment. They lower shaking and shocks. Your machines break down less often. You spend less money fixing things. The strong design helps your machines run longer and better.
- The couplings help you spend less on repairs.
- You get more work done and fewer problems.
- Your machines stay safe, even when things get tough.
Tip: Centaflex H couplings help you protect your machines and make them work better. They are good for hard jobs, diesel engines, and hydraulic pumps.
Centaflex H couplings vs other types
Performance Comparison
Centaflex H couplings work better than regular flexible couplings. They have high torsional stiffness. This helps power move without much twisting. Regular couplings twist more when loads are heavy. You lose power and parts wear out faster.
Centaflex H couplings also lower vibration well. The elastomer and plastic soak up shocks. Your machines run smoother and make less noise. Regular couplings do not stop vibration as much. You hear more sounds and feel more shaking.
Here is a table to show the differences:
| Feature | Centaflex H Coupling | Standard Flexible Coupling |
|---|---|---|
| Torsional Stiffness | High | Medium |
| Vibration Damping | Excellent | Basic |
| Misalignment Handling | Good | Fair |
| Noise Reduction | Strong | Moderate |
Tip: Centaflex H couplings help you get less vibration and better power.
Durability & Maintenance
Centaflex H couplings use strong elastomer and plastic. They do not get damaged by oil, dirt, or heat. Regular couplings can wear out faster in tough places. You spend more time and money changing them.
Centaflex H couplings need less fixing. The tough materials and small size mean fewer problems. You do not have to check or repair them often. Regular couplings need more checks and repairs.
- Centaflex H couplings last longer in hard jobs.
- You save money because you fix and replace less.
- Your machines keep working with less stopping.
Note: Centaflex H couplings keep your machines safe and help you avoid big problems. You get good performance and worry less.
Centaflex H couplings have strong torsional stiffness. They use tough elastomer parts. Their size is small and easy to fit. These couplings lower vibration and help with alignment. Your machines work longer and stay safe. You can use them for heavy-duty jobs. They work well in diesel engines and pumps.
- You spend less money fixing things.
- Your equipment stays safe from harm.
- You get good performance every day.
If you pick Centaflex H couplings, your machines last longer and stay protected.
FAQ
What makes Centaflex H couplings different from other couplings?
Centaflex H couplings are very stiff. They stop a lot of shaking. The elastomer and plastic parts are strong. These parts help machines last longer. You can use them for tough jobs. They also fit in small places.
Can Centaflex H couplings handle misalignment?
Yes, Centaflex H couplings work if shafts are not lined up. The elastomer part lets the coupling bend a little. This helps with small misalignments. Your machines stay safe and run well.
Where do you use Centaflex H couplings?
Centaflex H couplings go in diesel engines and pumps. You also use them in big machines. They protect your equipment and make it quieter. You see them in mining, farming, and building machines.
How do Centaflex H couplings reduce maintenance costs?
You fix machines less because the couplings are tough. They do not get ruined by oil or dirt. The strong parts last a long time. You change them less and your machines keep working.
What sizes are available for Centaflex H couplings?
Centaflex H couplings come in many sizes. The small shape fits tight spots. You pick the size that matches your engine or pump.
Tip: Always look at the manufacturer’s chart to find the right size.
