You see seals break when oil temperature and pressure change a lot. The table below shows how fast different seals wear out over time.
Seal Type | Failure Rate (per million hours) |
|---|---|
O-rings | 0.1 |
Oil seals | 8.0 |
Mechanical seals | 25.0 |
Knowing about these cycles helps you:
Use sensors to watch the conditions and stop sudden problems
Save money by fixing things only when you need to
Make better choices by checking the oil often
Key Takeaways
Check oil temperature and pressure often to stop seal damage and leaks.
Pick the best seal material for your equipment’s temperature and pressure needs so it lasts longer.
Put in seals with care and check them often to stop expensive problems.
Impact of Oil Temperature and Pressure
Material Degradation
When oil temperature and pressure change a lot, seals face many problems. These changes can make seals wear out faster than you think. If oil temperature goes up, the seal material can start to break down. Scientists have found different ways this happens:
Mechanism | Description |
|---|---|
Thermal Aging | Seal material gets weaker after being in heat for a long time. |
Swelling | Seal gets bigger and may not fit right anymore. |
Oxidation | Heat causes chemical changes that make the seal weaker. |
Loss of Additives | Important chemicals in the seal get used up, so it works less well. |
Formation of Extra Crosslink | The seal’s structure changes, so it is not as bendy. |
Chain Scission Reaction | The seal’s building blocks break apart, making it weak. |
Rapid Gas Decompression (RGD) | Fast drops in pressure can rip the seal. |
Compression Set | The seal stays squished and cannot go back to its shape. |
Friction and Wear | Heat and rubbing wear down the seal’s surface. |
Hysteresis Heat | Squeezing and letting go over and over makes extra heat. |
Temperature Effects | High oil temperature makes all these problems happen faster. |
Friction at the sealing edge can make oil temperature even higher. If the temperature goes up by 10°C, the seal can age two to four times faster. Some rubber seals cannot handle high oil temperature and will crack or get hard quickly. Using the wrong material can cause swelling or shrinking, which leads to leaks.
Pressure cycles matter too. When pressure jumps, seals can get pushed into tiny spaces and break. If your system changes direction fast or uses seals that are too soft or too hard, the seals wear out faster. Over time, the seal material can relax and lose its grip, so leaks happen more. Oil can change as it gets older, and this can also hurt the seal.
Loss of Elasticity
Seals need to stay bendy to work well. If oil temperature gets too high, rubber seals can get stiff and break easily. If the temperature gets too low, rubber can get hard and not stretch. High oil pressure makes these problems worse. If a seal loses its bendiness, it cannot keep a tight fit. This causes leaks and can damage equipment.
You can measure how much a seal has lost its stretch with special lab tests:
Test Type | Objective |
|---|---|
Drained Isothermal Test (DIT) | Checks how the seal changes when temperature and pressure stay the same. |
Undrained Isothermal Test (UIT) | Looks at the seal’s behavior without letting fluids out during temperature changes. |
Unjacketed Isothermal Test (UNJ) | Measures how the seal reacts to temperature without outside pressure. |
Drained Non-Isothermal Test (DNT) | Studies what happens when temperature changes and fluid moves. |
Undrained Non-Isothermal Test (UNT) | Checks the seal when temperature changes but fluid does not move. |
Some materials handle oil temperature changes better than others. FFKM seals can work at very high temperatures and still stretch. Silicone, FKM, and FFKM seals stay strong when oil temperature goes up and down. Elastomer seals can change shape and lose strength if the temperature changes too much.
Seal Failure Signs
You can spot seal problems early if you know what to look for. Here are some warning signs that oil temperature and pressure cycles are causing trouble:
Visible Oil Leaks Around the Seal: You might see dark stains or puddles near the seal. This means oil is leaking and the seal is not working.
Unusual Noises from the Machinery: Grinding or squealing sounds can mean the seal is damaged and friction is getting worse.
Machinery Overheating: If the seal fails, oil cannot cool the parts, and the machine gets too hot.
Contaminated Lubrication System: Dirt or water in the oil shows the seal is letting in things that should not be there.
Visible Signs of Wear on the Seal: Cracks, tears, or a seal that looks wrong mean it cannot do its job.
You can use tools like vibration checks, oil tests, and temperature sensors to find these problems before they get worse. Some teams use special pressure readings to watch for changes in seal performance. If you act early, you can fix a worn seal before it causes bigger damage.
Tip: Checking seals often and fixing problems early helps you avoid expensive breakdowns and keeps your equipment working well.
Factors Affecting Seal Life
Seal Materials

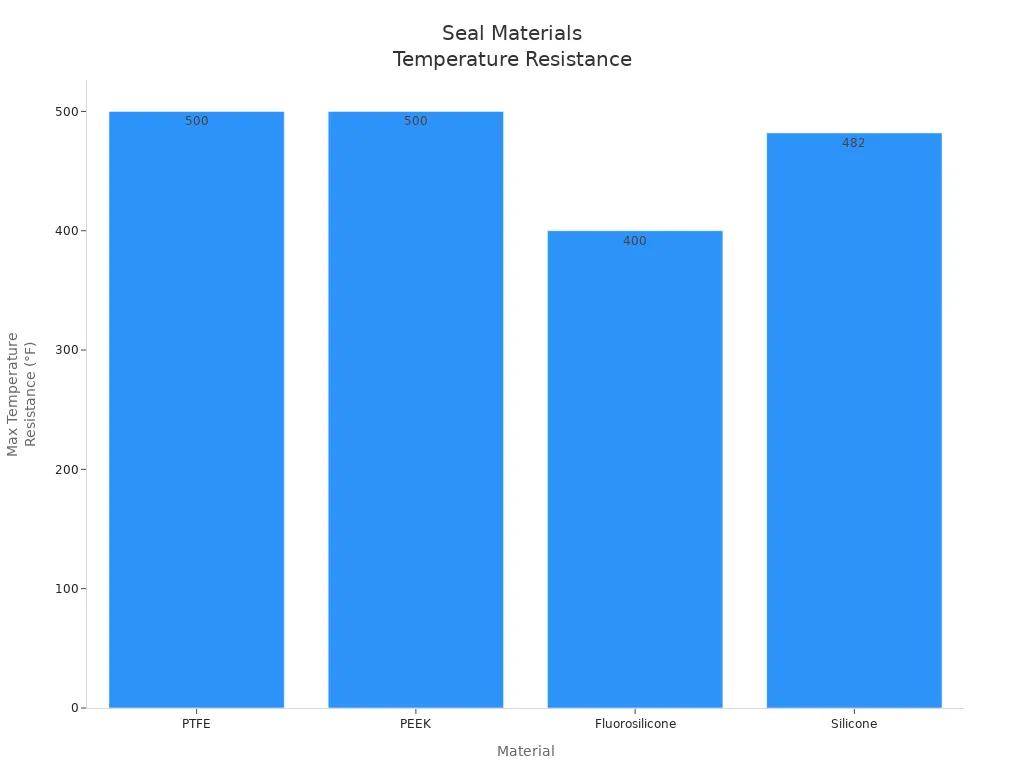

Picking the best seal material helps seals last longer. Some materials, like PTFE, PEEK, Fluorosilicone, and Silicone, can handle high oil temperature and pressure. The table below shows how these materials are different:
Material | Temperature Resistance | Applications |
|---|---|---|
PTFE | Above 500°F | Industrial chemicals, high-temperature seals |
PEEK | Up to 500°F | Wear resistance, chemical applications |
Fluorosilicone | Above 400°F | O-rings, harsh chemicals |
Silicone | Up to 482°F | Aerospace seals, automobile gaskets |
Other materials, like FKM, Graphite, and Kalrez®, also work well in tough places. If you need seals for very hard jobs, pick ones that can handle heat, chemicals, and pressure. YNF Rubber has many strong seal materials for these uses.
Operating Conditions
How you use your machines changes how long seals last. High oil temperature can make seals get hard or crack. If you use your system outside the right temperature or pressure, seals can break or change shape fast. Lots of pressure changes and long hours make seals wear out faster. Dirt or metal in the oil can scratch seals and cause leaks. When seals lose their stretch, they cannot keep oil in, and your machine does not work as well.
Note: Pressurized fluids push right on the seal lip. A good design stops the seal from changing shape and keeps it working.
Maintenance Practices
Doing regular checks helps seals last longer. You should look at seals often for leaks or damage. Clean your system to get rid of dirt and junk. Put oil on seals to stop rubbing. Make sure seals are put in straight to stop shaking and breaking. Watch oil temperature and check the fluid to find problems early. If you see leaks or pressure changes, fix them fast.
Checking often helps you find problems before they get big.
Cleaning keeps dirt out of your machine.
Oiling seals stops them from wearing out too soon.
Tip: If you follow a good maintenance plan and use better seal designs, your seals will last longer and work better.
Maximizing Seal Longevity
Material Selection
Picking the right seal material stops early problems. You need to match the seal to your machine’s needs. First, find out the oil temperature and pressure your equipment uses. Then, see if the seal material can handle the chemicals in your oil or fuel. Make sure the material stays strong and bendy when under pressure. Some special materials, like Highly Saturated Nitrile (HSN) and advanced fluoropolymers, keep their shape and work well even if things change. Self-lubricating seals help machines run better. YNF Rubber has many strong seal materials for hard jobs.
Tip: Always choose a seal that fits your system’s oil temperature and pressure.
Installation Tips
Putting seals in the right way helps them last longer. Clean the seal and the spot where it goes before you start. Look for any dirt or damage. Use the right tools so you do not bend or pinch the seal. Make sure the shaft and bore are lined up straight. Put a little oil or grease on the seal lip and shaft. This step helps stop early wear. Never push a seal in too hard. If you put a seal in wrong, it can leak or break right away.
Clean every part before you put in the seal.
Use the right tools to press evenly.
Add oil to the seal to lower rubbing.
Check that everything lines up to stop uneven pressure.
Monitoring and Maintenance
You can find problems early by watching your system closely. Use sensors to check oil temperature and pressure. IoT sensors gather data and help you see changes before they cause trouble. Some sensors can even hear small sounds that mean wear or leaks. Regular checks let you fix small problems before they get big. This keeps your equipment safe and working longer.
Technology | Description |
|---|---|
IoT Sensors | Gather data on oil temperature, pressure, and flow for early fixes. |
Note: Checking often makes things safer, helps machines work better, and stops sudden breakdowns.
Oil temperature and pressure changes can make seals wear out faster. These changes can cause leaks and make seals lose their stretch. You can help seals last longer by doing a few things:
Pick the best material for your job
Put seals in the right way
Check and oil seals often
Use special seals for hard jobs
Application Type | Strategy Description | Outcome Description |
|---|---|---|
Offshore Drilling Rigs | Use strong mechanical seals for nonstop work | Very little downtime happens |
Pipeline Operations | Use seals made for high pressure | Leaks are stopped for a long time |
If your job is really hard, talk to experts. They can help you choose the best seal materials and designs for what you need.
FAQ
How often should you check seals for wear?
You should check seals every month. Early checks help you spot leaks or damage before they cause bigger problems.
What is the best way to extend seal life?
Pick the right material, install seals carefully, and keep oil clean. Regular checks and using YNF Rubber seals help your equipment last longer.
Can you reuse old seals after removing them?
No, you should not reuse old seals. Old seals lose shape and strength. Always use a new seal for the best results.
