Choosing the right size rubber bushes by size helps your equipment work well and stay safe. You should look at the main sizes: inner diameter, outer diameter, length, and housing fit. Even a small size mistake can make the part wear out early or break. When you learn about rubber bushings, always check how much weight and movement your equipment needs. Also, think about where it will be used, like if it is hot or wet, to get the best results.
Key sizes to check:
Inner diameter
Outer diameter
Length
Housing fit
Key Takeaways
Always check the inner diameter, outer diameter, length, and housing fit before picking rubber bushes. Correct measurements stop early damage and equipment problems.
Pick the right rubber material by thinking about things like temperature and chemical exposure. This helps the bushes last longer and work better.
Check rubber bushes often for damage, like cracks or swelling. Finding problems early saves money and keeps equipment safe.
Make sure the rubber bush fits well with the equipment parts. If it is too loose or too tight, it can break or get damaged.
Look at technical data sheets from makers to learn about material properties and details. This helps you make smart choices.
Rubber Bushes by Size
Key Dimensions
When you pick rubber bushes by size, you need to look at the main measurements. These are the inner diameter, outer diameter, and length. Each measurement is important for how the bush fits and works. If you pick the wrong size, it can wear out fast or break.
Inner diameters for rubber bushes by size are usually between 0.25 inches and 3 inches.
Outer diameters and lengths change depending on the housing and what your equipment needs.
You should always measure with care. Even a small mistake in size can cause trouble. For example, if the inner or outer diameter is not right, the rubber bush might crack. Cracks can make your equipment unsafe. In many uses, the thickness of the rubber wall is also important. Changes in these sizes can change how well the bush stops shocks and controls shaking.
Tip: Always check the size two times before you put in rubber bushes by size. This helps you avoid mistakes and keeps your equipment working well.
Fit and Compatibility
Getting the right fit is just as important as picking the right size. Rubber bushes by size must match the housing and shaft in your equipment. If the fit is too loose or too tight, the bush will not work right. This can cause extra stress, cracks, or even make it break.
If the inner and outer diameters do not match, the bush can get too much stress. This makes it more likely to crack.
Cracks in the bush can be very dangerous in many uses.
Small changes in size can change how well the bush stops shaking and takes in shocks.
Tightening the hardware too much or using the wrong washers can make the bush break.
Using lubricants can make the bush go in deeper, which adds stress and can make it not line up right.
You should always check the fit and if it matches before putting in rubber bushes by size. Here are some common steps:
Procedure Type | Description |
|---|---|
Incoming Quality Control (IQC) | Test samples of raw materials for their physical properties. Check Certificates of Analysis. |
In-Process Quality Control (IPQC) | Watch key numbers during making. Do random checks. |
Final Quality Control (FQC) | Check sizes, test physical properties, check bonds, and look for problems. |
If you follow these steps, you can make sure the rubber bushes by size fit well and work safely in your equipment. Always remember that matching the parts is important for long-lasting use.
Choosing Long-Lasting Rubber Bushings
Load and Movement
When you pick rubber bushings, think about how much weight they hold. You also need to know how they move. This is called checking the load-bearing capacity. If you pick the wrong size or material, the bushings will not last. You want rubber bushings that can handle force and movement in your equipment.
In suspension design, a bushing must turn a lot but not move sideways much. This keeps things lined up. For example, in wishbone suspension, designers want the wheel to move up and down but stay straight. Some people use a stiffer, smaller bushing. Others make the rubber wall thicker or add inserts to help the bushing work better.
You should think about these things:
Load: How much force the bushing will hold.
Speed: How fast the parts move together.
Motion Type: Does it turn, slide, or go back and forth?
Temperature: What is the usual working temperature?
Lubrication: What kind of lubrication is used?
Environment: Will the bushing face dirt, water, or chemicals?
Wear Resistance: How long should the bushing last?
Friction Requirements: Does the bushing need to lower friction?
Cost: How much can you spend?
To get the best results, match the bushing’s size and material to these needs. For example, a car’s suspension bushing lets the wheel move up and down but keeps it straight. Sometimes, you need a thicker rubber wall or special inserts for better results.
Environmental Factors

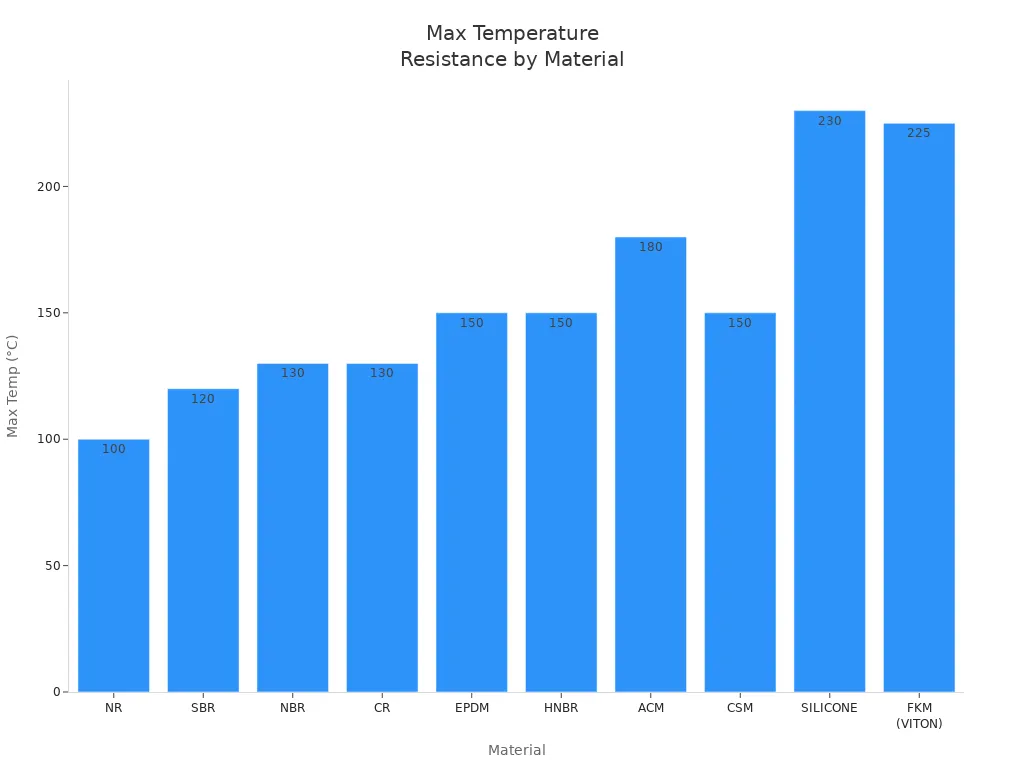

Rubber bushings need to last in tough places. When you think about the environment, look at temperature, chemicals, and moisture. Each one can change how well your bushings work and how long they last.
Cold can make rubber bushings stiff and easy to break. They do not absorb shocks well.
Heat can make rubber crack and wear out faster.
High heat can make bushings get bigger and loose.
Extreme cold can shrink bushings and cause rattling.
Hot weather can make rubber soft and change its shape.
Chemicals can also hurt rubber bushings. Oils, fuels, solvents, acids, and bases can make rubber swell, get soft, or break down. Water can also make rubber swell or wear out over time.
Chemical Type | Impact on Rubber Durability |
|---|---|
Oils | Can make rubber swell or get soft, hurting seals, gaskets, and hoses. |
Fuels | Can make rubber swell or get soft, hurting seals, gaskets, and hoses. |
Solvents | Can break down rubber and make it weak. |
Acids | Can damage rubber with chemicals. |
Bases | Can also damage rubber with chemicals. |
Water | Can make rubber swell or slowly break down. |
To get the best results, pick the right rubber type. Some rubbers work better in certain places:
Rubber Compound | Key Properties | Applications |
|---|---|---|
Silicone Rubber | Stands up to ozone, UV, and moisture; good at stopping shakes | Used outside in tough places, FDA-grade elastomers |
EPDM Rubber | Great against UV, ozone, and bad weather | Car suspension, engine mounts, HVAC systems |
SBR | Strong and tough; lasts under stress | Stops shakes, car suspension parts |
NBR | Very good with oil and fuel | Car bushings, hydraulic seals, hose linings |
EPDM is great in wet or damp places because it fights water and steam.
Silicone rubber is good for very hot or cold places and handles moisture well.
Makers test rubber bushings in many ways to make sure they last. Some common tests are:
Testing Method | Purpose |
|---|---|
Tensile Testing | Checks how much force rubber can take before breaking. |
Dynamic Mechanical Analysis | Looks at how rubber acts with different heat and stress. |
Fatigue Testing | Tests how rubber does with lots of repeated stress. |
Abrasion Resistance Testing | Checks how well rubber stands up to rubbing and wear. |
Water Resistance Testing | Makes sure rubber works well in wet places. |
Chemical Exposure Testing | Checks if rubber can handle oils and solvents. |
To get the best results and long-lasting rubber bushings, always match the rubber type to the place it will be used. Think about temperature, chemicals, and moisture before you choose. This helps your equipment last longer and work better.
Sizing and Material Selection
Material Impact
Picking a bushing material changes how the rubber bush works. The thickness of the rubber wall controls movement. If you make the wall thicker, the bush moves more. You can put inserts or a tube inside to make it stiffer. This helps the bush handle more force but still turn. Some bushings use a bellied tube to lower the soft spring rate. Thick rubber walls can make bushings act softer. Cavities in the rubber help the bush turn better. If you choose a softer or harder material, you change how much the bush bends.
Stiffer bushings give better control and keep parts straight.
They last longer because they do not squish easily.
Softer bushings let parts move more but wear out faster.
It is important to pick bushings that last. Good rubber materials help your equipment work well for a long time. When you check material quality, see how it handles force, movement, and the environment.
Material | Advantages | Disadvantages |
|---|---|---|
PTFE/Teflon | Low friction, resists rust, stands up to heat, works with additives | Size changes can cause problems, not as tough as metal |
PEEK | Handles heavy loads, wears well, resists chemicals | Costs more |
Other Materials | Properties change with load and chemicals | Disadvantages change |
Manufacturer Specs
Always look at technical data sheets and what makers suggest before picking bushing materials. These sheets show hardness, temperature range, and steam resistance. For example, General Rubber’s sheets show movement and temperature ratings for expansion joints. Technical data sheets help you choose the right size and material.
When you check manufacturing quality, look for these things:
Lasts long and works well for tough jobs
Handles heat and rubbing in hard places
Needs little care, like self-lubricating bushings
Holds weight and absorbs shocks for machines
Resists chemicals in harsh places
Tip: Always ask YNF Rubber for technical data sheets and specs. They give good rubber materials and smart advice for picking bushing materials.
Monitoring Performance
Regular Checks
You should check rubber bushings often to keep things working well. Checking them regularly helps you find problems before they get worse. When you watch bushings while they hold weight, you can spot early wear. This keeps your machines and vehicles safer.
Here are some tips for checking bushings:
Check rubber bushings every time you do maintenance or rotate tires.
Look for cracks, worn spots, or any damage on the bushings.
Follow your car or equipment manual for how often to check.
Make sure the rubber has not changed shape or bent.
Change any bushings that look damaged right away.
Checking often helps you find problems early. You can also see if the bushings have enough grease. This keeps your suspension or machines working their best. Doing these checks helps you stop sudden breakdowns and saves money on repairs.
Tip: Write down each time you check your bushings. This helps you remember changes and know when to replace them.
Signs of Wear
Knowing what worn or wrong-size bushings look like helps you fix things fast. If you see these signs, you might have a size or material problem:
You hear more noise than normal from your machine.
You feel more shaking when you use it or drive.
Steering feels loose or you notice it is hard to control.
The rubber looks cracked, swollen, or bent out of shape.
If you see these signs, try this:
Use the right amount of grease as the manual says.
Turn pins and bushings if your machine lets you. This spreads out the wear and keeps things working well.
Change broken bushings quickly to stop bigger problems.
If you skip these checks, repairs can cost a lot. Bad bushings can break other parts and make your whole system work worse. By following these tips, you keep your equipment running well and save money.
Picking the right rubber bush by size helps your equipment work well. Here are some easy steps to follow:
Measure the inside and outside diameters. Check the wall thickness and length too.
Pick the rubber hardness and material that fits your needs.
Look for things like cavities or inserts. These can make the bush stronger.
Make sure the bush fits your equipment and works with it.
Check your rubber bushes often. This helps you find cracks, loud sounds, or shaking early. If you need help, ask YNF Rubber for advice and technical data. This keeps your equipment safe and working for a long time.
FAQ
How do you measure a rubber bush for the right size?
You need to use a caliper or ruler. Measure the inner diameter, outer diameter, and length. Always check the housing size. Write down each measurement. Double-check before you order. This helps you get the best fit for your equipment.
What happens if you use the wrong size rubber bush?
A wrong size can cause noise, shaking, or damage. Your equipment may wear out faster. You might see cracks or loose parts. Always match the bush size to your machine. This keeps everything safe and working well.
Which rubber material works best for wet or outdoor use?
EPDM rubber resists water, steam, and weather. You can use it for outdoor or wet places. It lasts longer in tough conditions. YNF Rubber offers EPDM bushings for these needs.
How often should you check rubber bushings for wear?
Check bushings during every maintenance. Look for cracks, swelling, or noise. Write down each check in a log. Replace damaged bushings quickly. Regular checks help you avoid bigger problems.
Where can you get reliable rubber bushes and technical advice?
You can contact YNF Rubber for high-quality bushings and expert support. They provide technical data sheets and help you choose the right size and material for your needs.
