You can put in isolation rubber mounts even if you are new. If you set them up the right way, your machines will last longer. They will also work better. These mounts protect important parts by soaking up vibrations. They stop shaking and keep things safe. This means your machines do not break as much. You will not need to fix or replace them often. Follow this guide to avoid mistakes. It will help keep your equipment safe for a long time.
Key Takeaways
Isolation rubber mounts help machines by soaking up vibrations. This makes machines last longer and work better. – Pick the right rubber mount for your machine’s weight and how much it shakes. This helps the mount do its job well. – Check your rubber mounts often for cracks or damage. This keeps them working and stops expensive repairs. – Install mounts the right way. Clean the surfaces and use the right amount of force. This helps the mounts work as they should. – Use anti-vibration solutions in many fields, like cars and hospitals. This makes machines more stable and less noisy.
Isolation Rubber Mounts
What They Are
Isolation rubber mounts help machines stay steady and quiet. These mounts soak up shaking and noise. You can find them in homes and factories. They protect equipment from getting damaged. Air conditioners, pumps, and engines use rubber vibration mounts. Each kind of mount works best for a certain job. Here are some types you might use:
Cylindrical mounts let you change the height of compressors and pumps.
Conical mounts are good for engines and generators with different loads.
Plate mounts spread weight in machines like printing presses.
Hemispherical mounts block fast shaking in precise tools.
Bushing mounts go in suspension systems and shock absorbers.
Hanger mounts stop pipes and ducts from passing vibrations in buildings.
Round, conical, and square mounts work for many uses.
You pick rubber mounts made from materials that soak up vibration. These materials are natural rubber, neoprene, nitrile, silicone, and EPDM. Each type has special features. The table below shows what makes each material different:
Rubber Type | Key Properties |
|---|---|
Natural Rubber | Good at resisting wear, great at handling pressure, not good with oil |
Neoprene Rubber | Great at resisting wear, good with oil, okay with solvents |
Nitrile Rubber | Great at resisting wear, good to great with oil |
Silicone Rubber | Okay at resisting wear, not good with oil, bounces back well |
EPDM Rubber | Good at resisting wear, not good with oil, bounces back well |
Main Benefits
Isolation rubber mounts give you many benefits. They soak up vibrations and make machines quieter. You notice less shaking and less noise. Rubber vibration mounts help your equipment last longer. They protect parts from damage caused by vibration and shock. You see better performance and fewer repairs. Vibration isolators keep outside vibrations away from your machines. This helps your equipment work smoothly. Rubber mounts also stop vibrations from spreading. This keeps your space peaceful. You can use this guide to pick the right anti-vibration supports for your needs. Use it to find the best vibration isolation mounts for your machines.
Tip: Check your rubber mounts often for cracks or damage. Replace them if you see any problems. This helps your anti-vibration supports work well.
Why Use Anti-Vibration Solutions
Vibration and Noise Control
Machines can make loud sounds and shake a lot. Many things cause these problems. HVAC systems, pumps, and motors make strong vibrations. Construction and traffic add more noise to the area. People walking or moving heavy things also shake the ground. You can see the main causes in this table:
Source Type | Examples |
|---|---|
Mechanical | HVAC systems, pumps, motors, generators, elevators, garbage chutes, compactors, garage doors |
Environmental | Construction noises, local traffic |
Human Activity | Ground vibrations from human activities |
Anti-vibration mounts help block these shakes. These solutions help control noise and movement. When you use vibration isolation products, your space gets quieter. Your equipment is safer from outside shaking. Shock isolators and anti-vibration mounts work together. They keep machines steady and safe. You will hear less noise and have fewer problems.
Tip: Put anti-vibration mounts under noisy machines. You will hear much less sound.
Equipment Protection
You want your machines to last many years. Too much shaking can hurt electronics and other equipment. Vibration isolation helps you avoid expensive repairs. Shock isolators stop parts from getting loose or breaking. Anti-vibration mounts hold pieces in place. Imaging tools like MRIs and microscopes need protection too. Vibrations can make images blurry and cause mistakes. Anti-vibration solutions help you get clear pictures and smooth work.
Modern machines need careful control of movement. Vibration isolators and shock isolators keep equipment safe. You lower the chance of breakdowns and save money on repairs. Anti-vibration mounts help you worry less. You know your machines will work well for a long time.
Note: Check your anti-vibration mounts and shock isolators often. Replace them if you see cracks or damage. This keeps your vibration isolation system working well.
Choosing Rubber Mounts
Assessing Equipment Needs
Look at your equipment before picking rubber mounts. First, check how heavy and big your machine is. Find the center of gravity. Count how many anti-vibration supports you need. See where you can put them. Make sure there is enough space for each mount. If your equipment is easy to break, be extra careful. Think about how much vibration and shock your machine makes. Check the area around your equipment. The table below shows what you should look at:
Criteria Type | Specific Criteria |
|---|---|
Relating to the equipment | Weight, Dimensions, CG location, Number and location of isolators, Available space for isolators, Fragility level of the equipment |
Relating to dynamic inputs | Level of vibration, Level of shock, Space limitations |
Relating to general environment | Temperature, Humidity, Salt spray, Corrosive atmosphere, Altitude |
Tip: Always look at the spot and support before you put in anti-vibration mounts. This helps you get the best vibration isolation.
Types and Materials
There are many kinds of rubber mounts you can pick. Each kind works best for a certain job. Rubber vibration mounts come in shapes like cylindrical, conical, plate, and bushing. Match the mount type to your equipment. The material is important too. Natural rubber is good at stopping vibration and lasts a long time. Neoprene and nitrile work well with oil and chemicals. Silicone and EPDM handle heat and wetness. Studies show more natural rubber makes mounts stronger and last longer. Some mounts use special mixes to help with vibration isolation and energy loss. Pick anti-vibration supports that fit your machine and working place.

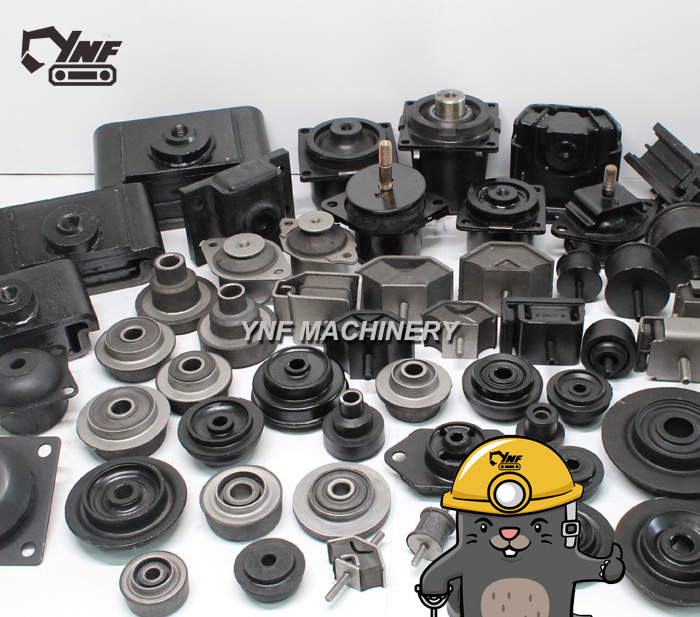

Note: YNF Rubber has many kinds of isolation rubber mounts. You can find anti-vibration supports for most machines and places.
Load and Environment
Think about how much weight your rubber mounts will hold. Heavy machines need strong anti-vibration mounts. If your equipment shakes a lot, pick mounts that stop vibration well. The place you work in also matters for how long mounts last. Chemicals, heat changes, sunlight, and wetness can hurt rubber vibration mounts. Pick anti-vibration supports that can handle these things. If you work in a hot or wet place, use mounts made for those spots. Good vibration isolation depends on matching the mount to your weight and place.
Chemicals
Heat changes
Sunlight
Wetness
Callout: If you want to know how to pick vibration damping mounts, always match the kind and material to your equipment and place. This keeps your anti-vibration system working well.
Installation Steps
Preparation and Tools
Get all your tools before you start. The right tools make things easier and safer. Here are some things you will need: Wrenches or a socket set help you turn bolts. A level helps you see if things are straight. Wear gloves and goggles to protect yourself. Always follow safety rules. Use lockout/tagout so machines do not turn on by mistake. If you work with heavy things, use rigging and fall protection. These steps help keep you safe.
Tip: Always wear gloves and goggles. Safety is the most important thing when you put in anti-vibration supports.
Cleaning and Marking
Clean the surfaces before you put on rubber mounts. Dirt, oil, or grease can make the mounts not stick well. Pick the right cleaner for your equipment. The table below shows some good cleaners:
Cleaning Agent | Method of Use |
|---|---|
Toluene | Use as a volatile solvent for degreasing. |
Acetone | Use as a volatile solvent for degreasing. |
Methyl Ethyl Ketone | Use as a volatile solvent for degreasing. |
Methyl Alcohol | Use as a volatile solvent for degreasing. |
Isopropyl Alcohol | Use as a volatile solvent for degreasing. |
Trichloroethylene | Degrease the rubber substrate as mentioned above. |
Modified Bleach Solution | Immerse rubber in a solution of diluted hydrochloric acid and bleach for 1-3 minutes. |
Sulfuric Acid Solution | Immerse rubber in concentrated sulfuric acid for 2-10 minutes. |
Dry the surface after you clean it. Mark where each anti-vibration support will go. Use a marker or chalk to make clear marks. This helps you put the mounts in the right place.
Note: Check your marks again before you move on. Good marks help you line things up better.
Drilling and Alignment
Drill holes where you made your marks. Use the right drill bit for your equipment. Drill slowly so you do not break anything. To check if things line up, do these steps: Use pins or tools to put the anti-vibration supports in place. Put a straight edge or level on your equipment to check if it is straight. Use feeler gauges to look for gaps between couplings. Even gaps mean better vibration isolation. Move the supports with jacking screws or shims to fix any gaps. Make small changes with screws and lock them in place. For heavy machines, make sure all supports touch the ground. Add shims if you see gaps so you do not get a “soft foot” problem.
Callout: Good alignment helps your anti-vibration system work well and last longer.
Mounting and Securing
Put each anti-vibration support on a flat surface. Line up the centerlines of the supports with the holes in your equipment. This makes installation easier and helps your mounts last longer. Tighten the bolts or nuts to hold the rubber mounts in place. Use a torque wrench and follow the right torque values. The table below shows some common torque numbers:
Component | Torque Specification |
|---|---|
Front Lifting Bracket Capscrews | 47 N·m (35 ft-lb) |
Rear Lifting Bracket Capscrews | 81 N·m (60 ft-lb) |
Marine Vibration Isolator Adjusting Nut | 102 N·m (75 ft-lb) |
Do not make the bolts too tight or too loose. Too much force can break the rubber mounts. Not enough force can make the supports unsafe.
Tip: Always use a torque wrench for the best results. This keeps your anti-vibration supports working right.
Final Checks
When you finish, look over your work. Check for gaps, loose bolts, or uneven supports. Make sure all anti-vibration supports touch the ground and hold the equipment steady. Look for these problems: Bond failure, like peeling metal or loose rubber. Cracks, swelling, or tears in the rubber mounts. Signs of heat or chemical damage. Uneven weight on the supports. If you see any problems, fix them before you use the equipment. Good installation keeps your anti-vibration system safe and working well. Your machines will last longer and work better.
Note: YNF Rubber has strong anti-vibration supports and rubber mounts for many machines. Pick the right ones for your equipment to get the best results.
Common Installation Mistakes
When you put in isolation rubber mounts, you should not make common mistakes. These mistakes can make vibration control worse. They can also hurt your equipment. Here are some problems you might see:
Wrong Mount Selection
Picking the wrong mount can cause trouble. If the mount does not fit your machine’s weight or vibration, it will not work right. Sometimes, people put metal parts next to isolators. This stops the isolator from blocking vibration. The metal part carries the shaking instead. Always check the type and size of mount before you use it. The table below shows some mistakes and why they matter:
Mistake Description | Explanation |
|---|---|
Rigid Metal Parts Parallel to Isolator | A metal part next to the isolator stops vibration isolation. |
Overloading with Incorrect Hangers | A hanger that is too big does not hold the weight. The mount can fail. |
Tip: Pick mounts that fit your machine. YNF Rubber has many types for different machines.
Poor Alignment
Bad alignment can cause more shaking and damage. If you do not line up the mounts, your machine may not sit flat. You might see the engine tilt or shake more. Here are signs of bad alignment:
The mount looks old or broken.
The engine sits at a slant.
You see uneven weight, which makes more shaking.
The equipment wobbles or moves.
The space between the mount’s base and top is not even.
Check alignment when you put in the mounts and after you finish. Good alignment helps mounts last longer.
Over- or Under-Tightening
If you tighten bolts too much or too little, you get problems. Too much force can crush the rubber. This makes it bad at stopping vibration. If you do not tighten enough, the mount can get loose. It will not hold the machine steady. Always use a torque wrench and follow the right numbers. This keeps your mounts working well.
Note: Careful work helps you avoid these mistakes. You get better vibration control and keep your equipment safe.
Maintaining Rubber Mounts
Regular Inspection
You should check your rubber mounts often to keep your equipment safe. Regular inspection helps you find problems early. Look at the mounts every few months or after heavy use. Use a flashlight to see all sides of each mount. Touch the mounts to feel for cracks or soft spots. If you see oil or dirt on the mounts, clean them right away. Make sure the mounts sit flat and do not move too much. If you use isolators in a place with heat or chemicals, check them more often. Write down what you see in a notebook. This helps you remember when to replace the mounts.
Tip: Set a reminder on your phone or calendar to inspect your mounts. This simple step can help you avoid big repairs later.
Signs of Wear
You can spot worn rubber mounts by looking and listening. Here are the most common signs that show your mounts need attention:
You feel more vibration in your machine.
The equipment moves more than before.
You hear loud or strange noises, like banging or knocking.
The mount looks shorter than when you first installed it.
You see problems on the mount:
The rubber pulls away from the metal.
Oil or diesel covers the mount.
Rust appears on the metal parts.
Cracks or tears show in the rubber.
The mount looks damaged or very flat.
If you notice any of these signs, replace the mount as soon as possible. Worn mounts can lead to bigger problems and cost more to fix. YNF Rubber offers strong and reliable mounts that help your machines run smoothly.
Note: Always use the right replacement parts for your equipment. This keeps your vibration control system working well.
Installing Anti-Vibration Solutions
Broader Applications
Anti-vibration solutions work in many places. They are not just for machines. Many industries use these products. Here are some ways people use them:
Industrial machinery uses anti-vibration supports. These supports help heavy equipment shake less. Machines last longer and work better.
The automotive industry uses vibration isolators. Cars become smoother and quieter. You get a better ride and better performance.
Aerospace and defense systems need vibration control. This keeps important equipment safe and precise. Devices work well during use.
Medical equipment needs no vibration. Anti-vibration mounts help sensitive devices give correct results.
Electronic and telecommunication devices use isolators. These keep equipment steady. Delicate parts stay safe and last longer.
You can find anti-vibration solutions in many places. They are in factories and hospitals. Using anti-vibration solutions protects your equipment. It also helps things work better in many jobs.
Note: YNF Rubber has many anti-vibration supports for different industries. You can find the right one for your needs.
Tips for Success
You want your anti-vibration system to last. Follow these tips to get good results:
Put anti-vibration supports around the center of gravity. This spreads the weight and keeps things steady.
Pick materials like elastomers, rubber, or cork. These help stop vibration and noise.
Check your isolators often. Regular checks help you find problems early. Test the dynamic stiffness to see if supports still work.
Write down inspections and replacements. This helps you plan for future checks. You can avoid sudden breakdowns.
Tip: Always use the right anti-vibration mount for your equipment and place. Careful planning and regular checks help you save money on repairs.
You can control vibration well if you follow these steps. First, pick the right rubber mounts for your machine. Clean the spot and make sure it is dry. Mark where you want to drill holes. Drill the holes slowly and carefully. Line up the isolators and tighten them. This keeps your machine safe from shaking and shock. Check your mounts often to find problems early. Rubber mounts soak up energy and protect important parts. YNF Rubber has good mounts for many jobs. Use this guide every time you put in new mounts.
Look at these steps before you start.
Check your mounts often to keep things safe.
Tip: Plan ahead and check your mounts often. This helps your machines last longer.
FAQ
How often should you check your rubber mounts?
You should inspect your rubber mounts every few months. If your equipment runs in harsh conditions, check them more often. Regular checks help you find problems early and keep your machines safe.
Can you install isolation rubber mounts by yourself?
Yes, you can install isolation rubber mounts on your own. Follow the steps in this guide. Use the right tools and take safety precautions. If you feel unsure, ask for help from a professional.
What should you do if you see cracks in your mounts?
Replace any mount with cracks or damage right away. Damaged mounts cannot protect your equipment. Using worn mounts may cause more vibration and noise.
Where can you buy quality isolation rubber mounts?
You can buy quality isolation rubber mounts from YNF Rubber. They offer many types for different machines and uses. You get reliable products that help your equipment last longer.
Do isolators work for all types of machines?
Isolators work for most machines that create vibration. You need to choose the right type and size for your equipment. Always check the weight and environment before you pick a mount.
